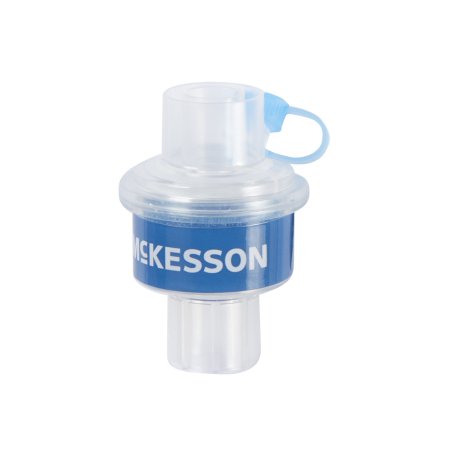

Heat and Moisture Exchanger with Filter McKesson 29.2 mg H2O / L @ VT 500 mL 2.5 cm H20 @ 30 LPM

Heat and Moisture Exchanger with Filter McKesson 29.2 mg H2O / L @ VT 500 mL 2.5 cm H20 @ 30 LPM


:In stock

McKesson # 1109626
Manufacturer # 16-6220
Brand McKesson
Manufacturer McKesson Brand
Country of Origin Mexico
Application Heat and Moisture Exchanger with Filter
Connection Type 22 mm O.D. / 15 mm I.D. x 22 mm I.D. / 15 mm O.D. Port
Dead Space 26.77 mL
Filter Efficiency BFE 99.9%
Filter Efficiency VFE 99.9%
Filter Type Hygroscopic
Is_Active_Vendor Y
Is_Discontinued N
Is_Medical_Device Y
Lot_Tracking_Flag N
Moisture Output 29.2 mg H2O / L @ VT 500 mL
On_Allocation N
Port Type Gas Sampling Port
Resistance 2.5 cm H20 @ 30 LPM
Sterility NonSterile
Style Straight
Supplier_ID 488035
UNSPSC Code 42272219
User Adult
Volume 150 to 1000 mL
Latex Free Indicator Not Made with Natural Rubber Latex


  • McKesson Mini In-Line Heat and Moisture Exchanger with CO2 Port
  • Mini design allows tidal volumes from 150 mL - 1000 mL for broad use among children and adults
  • In-line design allows for use with gas elbow to fit to fit user preference
  • For short-term airway humidification
  • For the moisture and heat retention for return to the patient and provides filtration for prevention of breathing system contamination
  • Optimal choice for enhancing the effectiveness of any breathing systems such as ventilators or anesthesia circuits
  • Bacterial/viral filtration efficiencies in excess of 99.9%
  • High moisture retention characteristics
  • Clear housing to view levels of humidification
  • Provide superior moisture output, minimum size, low breathing resistance
  • True hygroscopic condensing humidifier (HCH) for maximal performance without potentially harmful chemicals
  • Treated with physiologically safe calcium chloride, hygroscopic membrane traps patient’s moisture providing effective airway humidification
  • Low resistance to airflow minimizes work of breathing
  • Effective filtration reduces the risk of colonization in breathing tubes and minimizes sampling line blockage
  • End tidal CO2 sampling port offers convenient access to airway gases
  • Luer gas sampling ports for secure connection
  • ISO-standard connections for secure, leak-resistant attachment to breathing systems
  • Conveniently-located luer connection permits gas sampling at the top of the housing, just as if a common gas sampling elbow were being used
  • Disposable available in convenient case quantities and individually-wrapped for single patient use
  • Not Made with Natural Rubber Latex
  • 1 Per Pack, 50 Packs Per Case
